hexString 을 byte로 변환해주는 netty 서버 테스트

1. Jmeter 설정

% Jmeter 설치 및 설정은 https://man-tae.tistory.com/9 참고

1.1 Jmeter 실행

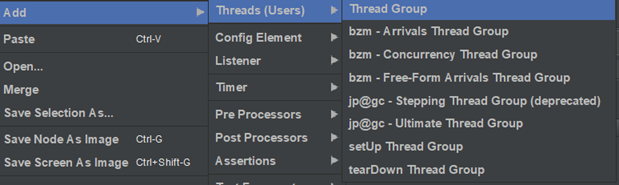

Jmeter 실행 -> Thread Group 생성

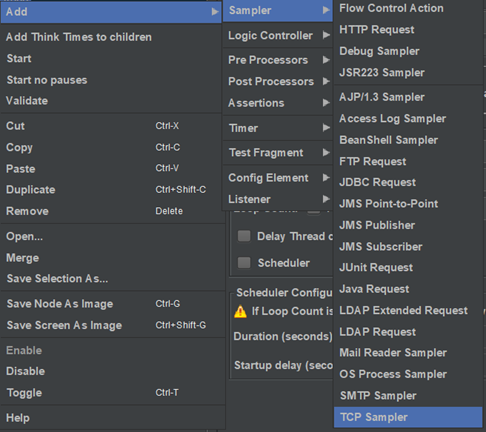

1.2 TCP Sampler 생성

TCP Sampler 생성->

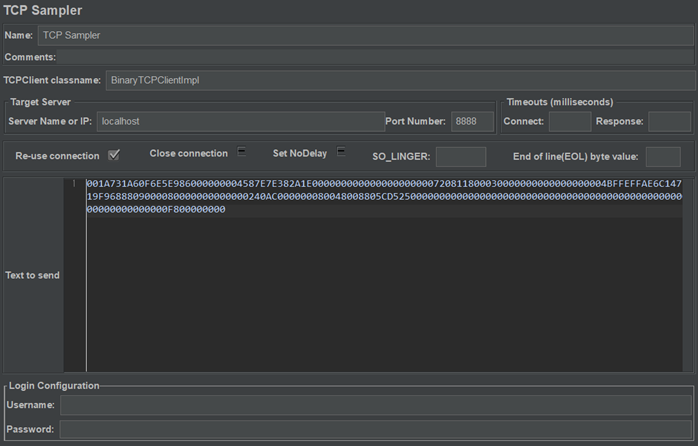

TCPClient classname 에 BinaryTCPClientImpl 입력 -> 전송할 IP, 포터 번호 입력 -> 전송할 hexString 입력(공백이 없어야 함)

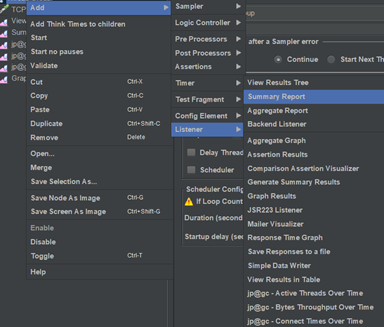

1.3 listener 생성

원하는 listener 생성

2. Netty 서버 생성

2.1 netty project 생성

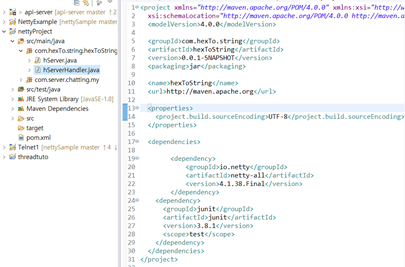

이클립스 실행 -> 메이븐 프로젝트 생성 -> hServer.java, hServeHandler.java 생성 -> pom.xml에 netty dependency 추가

2.2 코드 작성

hServer.java 작성

  package [com.hexTo.string.hexToString;](com.hexTo.string.hexToString;)

  import [io.netty.bootstrap.ServerBootstrap;](io.netty.bootstrap.ServerBootstrap;)
  import [io.netty.channel.ChannelFuture;](io.netty.channel.ChannelFuture;)
  import [io.netty.channel.ChannelInitializer;](io.netty.channel.ChannelInitializer;)
  import [io.netty.channel.ChannelPipeline;](io.netty.channel.ChannelPipeline;)
  import [io.netty.channel.EventLoopGroup;](io.netty.channel.EventLoopGroup;)
  import [io.netty.channel.nio.NioEventLoopGroup;](io.netty.channel.nio.NioEventLoopGroup;)
  import [io.netty.channel.socket.SocketChannel;](io.netty.channel.socket.SocketChannel;)
  import [io.netty.channel.socket.nio.NioServerSocketChannel;](io.netty.channel.socket.nio.NioServerSocketChannel;)
  import [io.netty.handler.codec.string.StringDecoder;](io.netty.handler.codec.string.StringDecoder;)

  public class hServer {
      public static void main(String\[\] args) throws Exception {
          EventLoopGroup bossGroup = new NioEventLoopGroup(1);
          EventLoopGroup workerGroup = new NioEventLoopGroup();
          try {
              ServerBootstrap b = new ServerBootstrap();
              b.group(bossGroup, workerGroup)
               .channel([NioServerSocketChannel.class)](NioServerSocketChannel.class))
               .childHandler(new ChannelInitializer() {
                  @Override
                  public void initChannel(SocketChannel ch) {
                      ChannelPipeline p = ch.pipeline();
                      p.addLast(new hServerHandler());

                  }
              });
              ChannelFuture f = b.bind(8888).sync();
              f.channel().closeFuture().sync();
          }
          finally {
              workerGroup.shutdownGracefully();
              bossGroup.shutdownGracefully();
          }
      }
  }

hServeHandler.java 작성

  package [com.hexTo.string.hexToString;](com.hexTo.string.hexToString;)

  import [io.netty.buffer.ByteBuf;](io.netty.buffer.ByteBuf;)
  import [io.netty.buffer.ByteBufUtil;](io.netty.buffer.ByteBufUtil;)
  import [io.netty.channel.ChannelHandlerContext;](io.netty.channel.ChannelHandlerContext;)
  import [io.netty.channel.ChannelInboundHandlerAdapter;](io.netty.channel.ChannelInboundHandlerAdapter;)

  public class hServerHandler extends ChannelInboundHandlerAdapter {

  public static byte\[\] hexStringToByte(String s) {
      int len = s.length();
      byte\[\] data = new byte\[len / 2\];
      for (int i = 0; i < len; i += 2) {
          data\[i / 2\] = (byte) (([Character.digit(s.charAt(i),](Character.digit(s.charAt(i),) 16) << 4)
                               + [Character.digit(s.charAt(i+1),](Character.digit(s.charAt(i+1),) 16));
      }
      return data;
  }

  public static String byteToHexString(byte\[\] bytes){

  StringBuilder sb = new StringBuilder();

  for(byte b : bytes){

  [sb.append(String.format(](sb.append(String.format()"%02X", b&0xff));
  }

  return sb.toString();
  }

  @Override
      public void channelRead(ChannelHandlerContext ctx, Object msg) {
          ByteBuf readMessage = (ByteBuf) msg;
          String bbu = ByteBufUtil.hexDump(readMessage);
          [System.out.println(](System.out.println()"channelRead : hexdump; " + bbu);

          byte\[\] ByteArray = hexStringToByte(bbu);
          [System.out.println(](System.out.println()"channelRead : hex to byte; " + ByteArray.toString());

          String str = byteToHexString(ByteArray);
          [System.out.println(](System.out.println()"channelRead : byte to hex; " + str);

          [ctx.write(ByteArray);](ctx.write(ByteArray);)

      }

      @Override
      public void channelReadComplete(ChannelHandlerContext ctx) {
          [System.out.println(](System.out.println()"channelReadComplete");
          [ctx.flush();](ctx.flush();)
          [ctx.close();](ctx.close();)
      }

      @Override
      public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {
          cause.printStackTrace();
          [ctx.close();](ctx.close();)
      }
  }

3. Test

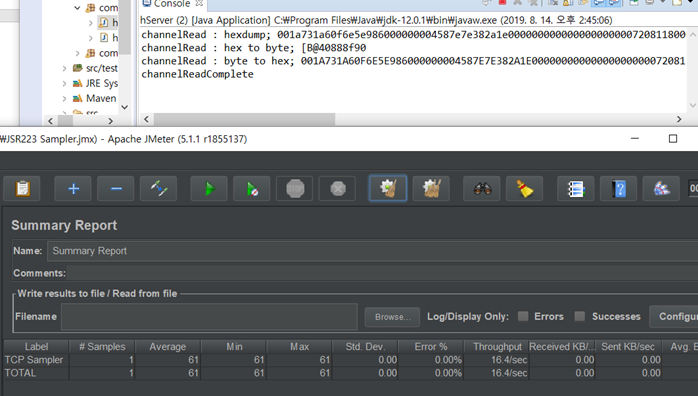

Netty 서버 실행 -> Jmeter 데이터 전송 -> 데이터 전송 확인
